AWS API Gateway

Thumbnail icon

AWS API Gateway service allows you to create RESTful APIs, HTTP APIs, and WebSocket APIs for real-time two-way communication applications in containerized and serverless environments, as well as web applications.

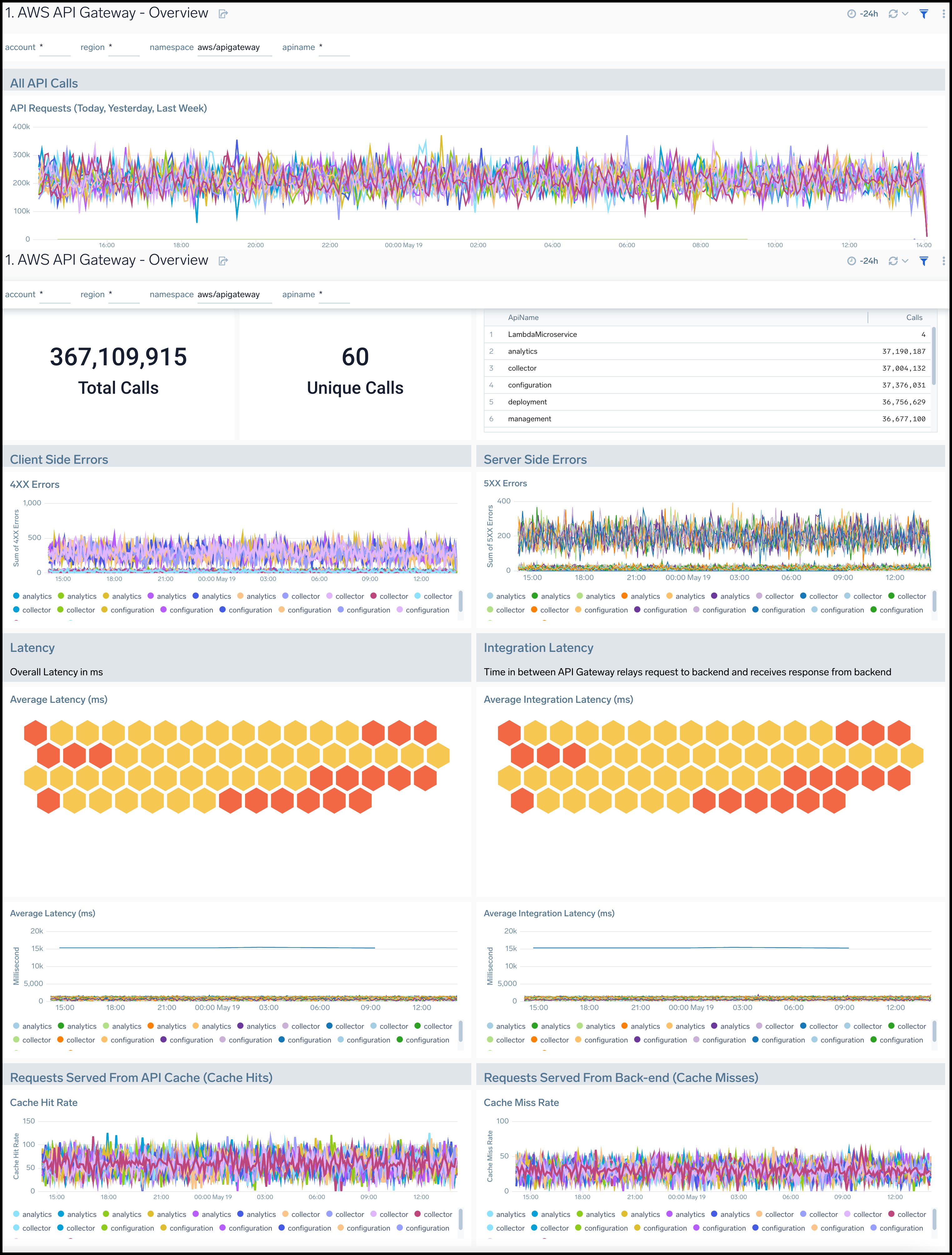

The Sumo Logic AWS API Gateway app provides insights into API Gateway tasks while accepting and processing concurrent API calls throughout your infrastructure, including traffic management, CORS support, authorization and access control, throttling, monitoring, and API version management.

Log and metrics types​

The AWS API Gateway app uses the following logs and metrics:

Sample log messages​

Sample CloudTrail Log Message
{
"eventVersion":"1.05",
"userIdentity":{
"type":"IAMUser",
"principalId":"A12445W32RZN24HABCD12",
"arn":"arn:aws:iam::123408221234:user/bob",
"accountId":"123408221234",
"accessKeyId":"ASIAZ123456Y3IMWK7X5",
"userName":"bob",
"sessionContext":{
"sessionIssuer":{

},
"webIdFederationData":{

},
"attributes":{
"mfaAuthenticated":"true",
"creationDate":"2020-02-17T08:08:01Z"
}
},
"invokedBy":"signin.amazonaws.com"
},
"eventTime":"2020-02-17T08:08:01Z",
"eventSource":"apigateway.amazonaws.com",
"eventName":"GetRestApi",
"awsRegion":"us-east-1",
"sourceIPAddress":"149.236.17.11",
"userAgent":"signin.amazonaws.com",
"requestParameters":{
"restApiId":"w1234nsgjxf",
"template":false
},
"responseElements":null,
"requestID":"1234169e-e70a-44a1-a691-3cd3f857092a",
"eventID":"051572b0-83ef-49a3-82f6-bbef1ac8c488",
"readOnly":true,
"eventType":"AwsApiCall",
"recipientAccountId":"123408221234"
}
Sample Access Log Message
{
"requestId": "bf04adbf-eacc-4601-8c14-94605f242e1a",
"extendedRequestId": "Sca3bFUQgi0EYeA=",
"identitySourceIp": "103.108.207.58",
"identityCaller": "-",
"identityUser": "-",
"requestTime": "01/Feb/2024:06:47:49 +0000",
"status": "500",
"authorizerProperty": "-",
"routeKey": "-",
"apiId": "9iljix61i7",
"authorizeError": "-",
"authorizeLatency": "-",
"authorizeStatus": "-",
"authorizerError": "-",
"authorizerIntegrationStatus": "-",
"authorizerIntegrationLatency": "-",
"authorizerLatency": "-",
"authorizerPrincipalId": "-",
"authorizerRequestId": "-",
"authorizerStatus": "-",
"authenticateError": "-",
"authenticateLatency": "-",
"authenticateStatus": "-",
"connectedAt": "-",
"connectionId": "-",
"domainName": "9iljix61i7.execute-api.eu-north-1.amazonaws.com",
"errorMessage": "Internal server error",
"errorResponseType": "DEFAULT_5XX",
"errorValidationErrorString": "-",
"eventType": "-",
"identityAccountId": "-",
"identityCognitoAuthenticationProvider": "-",
"identityCognitoAuthenticationType": "-",
"identityCognitoIdentityId": "-",
"identityCognitoIdentityPoolId": "-",
"identityPrincipalOrgId": "-",
"identityUserAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/121.0.0.0 Safari/537.36",
"identityUserArn": "-",
"identityApiKey": "-",
"identityApiKeyId": "-",
"integrationError": "Execution failed due to configuration error: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
"integrationIntegrationStatus": "-",
"integrationLatency": "258",
"integrationRequestId": "-",
"integrationStatus": "-",
"contextIntegrationLatency": "258",
"requestTimeEpoch": "1706770069673",
"stage": "test",
"messageId": "-",
"wafError": "-",
"wafLatency": "10",
"wafStatus": "200"
}

Sample queries​

Average Latency by API Name (Metric-based)
Namespace=aws/apigateway metric=Latency statistic=Average account=* region=* apiname=* | avg by apiname, namespace, region, account
Top Error Codes (CloudTrail Log-based)
"\"eventSource\":\"apigateway.amazonaws.com\"" errorCode account=dev Namespace=aws/apigateway region=us-east-1
| json "eventName", "eventSource", "awsRegion", "userAgent", "recipientAccountId", "userIdentity", "requestParameters", "responseElements", "sourceIPAddress", "errorCode", "errorMessage", "requestID" as event_name, event_source, Region, user_agent, accountId1, userIdentity, requestParameters, responseElements, src_ip, errorCode, errorMessage, requestID nodrop
| where event_source = "apigateway.amazonaws.com" and !isEmpty(errorCode)
| json field=userIdentity "accountId", "arn", "userName", "type" as accountId2, arn, username, type nodrop | parse field=arn ":assumed-role/*" as user nodrop | parse field=arn "arn:aws:iam::*:*" as accountId, user nodrop
| json field=requestParameters "basePath", "domainName" as basePath, domainName nodrop | json field=responseElements "name" as ApiName nodrop // CreateRestApi, CreateApiKey, CreateUsagePlan, CreateUsagePlanKey, CreateUsagePlanKey, ImportApi, ImportRestApi, UpdateRestApi, UpdateUsagePlan provides ApiName
| where (tolowercase(ApiName) matches tolowercase("*")) or isBlank(apiname)
| if (isEmpty(errorCode), "Success", "Failure") as eventStatus
| if (!isEmpty(accountId1), accountId1, accountId2) as accountId
| if (isEmpty(userName), user, userName) as user
| count as eventCount by errorCode
| top 10 errorCode by eventCount, errorCode asc
Distribution by User Agent (Access Log-based)
account=dev region=us-east-1 namespace=aws/apigateway apiname=* apiid stage domainname requestId identityUserAgent
| json "requestId", "apiId", "authorizerError", "errorMessage", "errorResponseType", "status", "integrationLatency", "domainName", "identitySourceIp", "identityUserAgent", "stage", "integrationStatus" as requestId, apiId, authorizerError, errorMessage, errorResponseType, status, integrationLatency, domainName, identitySourceIp, identityUserAgent, stage, integrationStatus
| json "wafLatency", "responseLatency", "responseLength", "path", "httpMethod", "protocol" as wafLatency, responseLatency, responseLength, path, httpMethod, protocol nodrop
| parse field=domainName "*.execute-api.*.amazonaws.com" as apiid, region
| where account matches "dev" and region matches "us-east-1" and apiid matches "*" and apiname matches "*"
| where !(identityUserAgent=="-")
| count as Frequency by identityUserAgent
| sort by Frequency, identityUserAgent asc

Collecting logs and metrics for AWS API Gateway​

Fields in field schema​

  1. Classic UI. In the main Sumo Logic menu, select Manage Data > Logs > Fields.
    New UI. In the top menu select Configuration, and then under Logs select Fields. You can also click the Go To... menu at the top of the screen and select Fields.
  2. Search for the below fields:
    • apiname
    • account
    • namespace
    • region
    • accountid
  3. If not present, create it. To learn how to create and manage fields, see Fields.

Field extraction rules​

To learn how to create field extraction rules, Create a Field Extraction Rules.

Create a field extraction rule for cloudTrail logs:

Rule Name: AwsObservabilityApiGatewayCloudTrailLogsFER
Applied at: Ingest Time
Scope (Specific Data):
account=* eventname eventsource "apigateway.amazonaws.com"
Parse Expression:
| json "eventSource", "awsRegion", "responseElements", "recipientAccountId" as eventSource, region, responseElements, accountid nodrop
| where eventSource = "apigateway.amazonaws.com"
| "aws/apigateway" as namespace
| json field=responseElements "name" as ApiName nodrop
| tolowercase(ApiName) as apiname
| fields region, namespace, apiname, accountid

Create a field extraction rule for access logs:

Rule Name: AwsObservabilityApiGatewayAccessLogsFER
Applied at: Ingest Time
Scope (Specific Data):
account=* region=* apiId domainName stage requestId status
Parse Expression:
json "apiId", "domainName", "stage" as apiId, domainName, stage
| "aws/apigateway" as namespace
| apiId as apiName
| fields apiName, namespace, apiId

Create/Update field extraction rule(s) for cloudwatch logs:

Rule Name: AwsObservabilityGenericCloudWatchLogsFER
Applied at: Ingest Time
Scope (Specific Data):
account=* region=* (_sourceHost=/aws/* or _sourceHost=API*Gateway*Execution*Logs*)
Parse Expression:
if (isEmpty(namespace),"unknown",namespace) as namespace
| if (_sourceHost matches "/aws/lambda/*", "aws/lambda", namespace) as namespace
| if (_sourceHost matches "/aws/rds/*", "aws/rds", namespace) as namespace
| if (_sourceHost matches "/aws/ecs/containerinsights/*", "aws/ecs", namespace) as namespace
| if (_sourceHost matches "/aws/kinesisfirehose/*", "aws/firehose", namespace) as namespace
| if (_sourceHost matches "/aws/apigateway/*", "aws/apigateway", namespace) as namespace
| if (_sourceHost matches "API-Gateway-Execution-Logs*", "aws/apigateway", namespace) as namespace
| parse field=_sourceHost "/aws/lambda/*" as functionname nodrop | tolowercase(functionname) as functionname
| parse field=_sourceHost "/aws/rds/*/*/" as f1, dbidentifier nodrop
| parse field=_sourceHost "/aws/apigateway/*/*" as apiid, stage nodrop
| parse field=_sourceHost "API-Gateway-Execution-Logs_*/*" as apiid, stage nodrop
| apiid as apiName
| tolowercase(dbidentifier) as dbidentifier
| fields namespace, functionname, dbidentifier, apiid, apiName

Metrics rules​

Create the following metrics rule for the AWS API Gateway app, if not already created. To learn how to create a metrics rule, see Metrics Rules Editor.

Rule name: AwsObservabilityApiGatewayApiNameMetricsEntityRule
Metric match expression: Namespace=AWS/ApiGateway apiid=*
Variable name: apiname
Tag sequence: $apiid._1
Save it

Configure Hosted Collector​

In Sumo Logic, configure a Hosted Collector.

Collect metrics for AWS API Gateway​

Sumo Logic supports collecting metrics using two source types:

note

Namespace for AWS API Gateway Service is AWS/ApiGateway.

For Metadata, add an account field to the source and assign it a value that is a friendly name/alias to your AWS account from which you are collecting metrics. This name will appear in the AWS Observability view. Metrics can be queried via the β€œaccount” field.

Enable cache metrics​

To collect CacheHitCount and CacheMissCount metrics, make sure you enable caching for a specific stage.

Enable enhanced metrics​

API Gateway will not send these metrics unless you have explicitly enabled detailed CloudWatch metrics. Enabling such metrics will incur additional charges to your account. For pricing information, see Amazon CloudWatch Pricing. Follow the below instructions for your respective API types.

Enable enhanced metrics for REST APIs​
  1. Open the Amazon API Gateway console, then click on your REST API.

  2. Select stages section, then select your stage..

  3. Navigate to the Logs and tracing section, then click Edit.

  4. Select the Detailed metrics checkbox.

  5. Click Save changes.

    AWS API Gateway

    By default, methods inherit stage-level settings. You can customize settings for a method, by configuring Method overrides.

    AWS API Gateway
Enable enhanced metrics for HTTP APIs​
  1. Open the Amazon API Gateway console, and click on your HTTP API.

  2. Under the Monitor section, click Metrics.

  3. Select the stage, and click Edit.

  4. Toggle the enabled button to enable the Detailed route metrics.

  5. Click Save.

  6. Click Deploy.

    AWS API Gateway
Enable enhanced metrics for WebSocket APIs​

The below steps require AWS CLI, refer install and configure documentation, if you do not have it installed and configured in your local machine.

Call the UpdateStage action of the API Gateway V2 REST API to update the detailedMetricsEnabled property to true. Alternatively, you can call the update-stage AWS CLI command to update the DetailedMetricsEnabled property to true as shown below:

aws apigatewayv2 update-stage --api-id <API_ID> --stage-name <STAGE_NAME> --default-route-settings <YOUR_ROUTE_SETTINGS> --output <OUTPUT_FORMAT> --region <REGION>
Example
aws apigatewayv2 update-stage --api-id 9pk1qlmpci --stage-name $default --default-route-settings "{\"DetailedMetricsEnabled\":true}" --output json --region eu-north-1

Collect access logs for AWS API Gateway​

  1. To your Hosted Collector, add an AWS Kinesis Firehose for Logs Source.

    1. Name. Enter a name to display the new Source.
    2. Description. Enter an optional description.
    3. Enable S3 Replay. Do not check this option.
    4. Source Category. Enter aws/apigateway/accesslogs.
    5. Fields. Add below fields in it:
      1. Add an account field and assign it a value that is a friendly name/alias to your AWS account from which you are collecting logs. This name will appear in the AWS Observability view. Logs can be queried via the account field.
      2. Add region and accountid fields and assign their respective values.
    6. Enable Timestamp Parsing. Select the Extract timestamp information from log file entries check box.
    7. Time Zone. Select Use time zone from log file. If none is detected use, and select Use Collector Default from the dropdown.
    8. Timestamp Format. Select Automatically detect the format.
    9. Enable Multiline Processing. Select the Detect messages spanning multiple lines check box, and select Infer Boundaries.
    10. Click Save.
    11. Save the given URL of the source for next step.
  2. Create Stack in AWS console with given CloudFormation Template.

  3. Create a log group in CloudWatch Logs by referring to the AWS documentation. Make sure to set your log group name convention as /aws/apigateway/<apiid>/<stagename>.

  4. Follow the below steps to enable access logs for each respective API type:

    note

    Make sure to remove :* from the end while adding Access log destination ARN.

    • Enable Access logs for REST APIs by referring to the AWS documentation. When you specify the Log format field, use the below JSON.

      AWS API Gateway
    JSON Log Format for REST API
    {
    "accountId": "$context.accountId",
    "requestId": "$context.requestId",
    "authorizerClaimsProperty": "$context.authorizer.claims.property",
    "extendedRequestId": "$context.extendedRequestId",
    "identitySourceIp": "$context.identity.sourceIp",
    "identityCaller": "$context.identity.caller",
    "identityUser": "$context.identity.user",
    "requestTime": "$context.requestTime",
    "status": "$context.status",
    "routeKey": "$context.routeKey",
    "apiId": "$context.apiId",
    "domainPrefix": "$context.domainPrefix",
    "httpMethod": "$context.httpMethod",
    "identityClientCertSerialNumber": "$context.identity.clientCert.serialNumber",
    "identityUserAgent": "$context.identity.userAgent",
    "path": "$context.path",
    "protocol": "$context.protocol",
    "resourceId": "$context.resourceId",
    "responseOverrideStatus": "$context.responseOverride.status",
    "authorizeError": "$context.authorize.error",
    "resourcePath": "$context.resourcePath",
    "authorizeLatency": "$context.authorize.latency",
    "authorizeStatus": "$context.authorize.status",
    "authorizerError": "$context.authorizer.error",
    "authorizerIntegrationStatus": "$context.authorizer.integrationStatus",
    "authorizerIntegrationLatency": "$context.authorizer.integrationLatency",
    "authorizerLatency": "$context.authorizer.latency",
    "authorizerPrincipalId": "$context.authorizer.principalId",
    "authorizerRequestId": "$context.authorizer.requestId",
    "authorizerStatus": "$context.authorizer.status",
    "authenticateError": "$context.authenticate.error",
    "authenticateLatency": "$context.authenticate.latency",
    "authenticateStatus": "$context.authenticate.status",
    "connectedAt": "$context.connectedAt",
    "connectionId": "$context.connectionId",
    "domainName": "$context.domainName",
    "errorMessage": "$context.error.message",
    "errorResponseType": "$context.error.responseType",
    "errorValidationErrorString": "$context.error.validationErrorString",
    "eventType": "$context.eventType",
    "identityAccountId": "$context.identity.accountId",
    "identityPrincipalOrgId": "$context.identity.principalOrgId",
    "identityUserArn": "$context.identity.userArn",
    "identityApiKey": "$context.identity.apiKey",
    "identityApiKeyId": "$context.identity.apiKeyId",
    "integrationError": "$context.integration.error",
    "integrationIntegrationStatus": "$context.integration.integrationStatus",
    "integrationLatency": "$context.integration.latency",
    "integrationRequestId": "$context.integration.requestId",
    "integrationStatus": "$context.integration.status",
    "contextIntegrationLatency": "$context.integrationLatency",
    "responseLatency": "$context.responseLatency",
    "responseLength": "$context.responseLength",
    "xrayTraceId": "$context.xrayTraceId",
    "requestTimeEpoch": "$context.requestTimeEpoch",
    "stage": "$context.stage",
    "messageId": "$context.messageId",
    "wafResponseCode": "$context.wafResponseCode",
    "wafError": "$context.waf.error",
    "wafLatency": "$context.waf.latency",
    "wafStatus": "$context.waf.status",
    "webaclArn": "$context.webaclArn"
    }
    • Enable Access logs for HTTP APIs by referring to AWS documentation and when you specify the Log format field use the below JSON.

      AWS API Gateway
    JSON Log Format for HTTP API
    {
    "requestId": "$context.requestId",
    "extendedRequestId": "$context.extendedRequestId",
    "identitySourceIp": "$context.identity.sourceIp",
    "identityCaller": "$context.identity.caller",
    "identityUser": "$context.identity.user",
    "requestTime": "$context.requestTime",
    "httpMethod": "$context.httpMethod",
    "resourcePath": "$context.resourcePath",
    "status": "$context.status",
    "protocol": "$context.protocol",
    "responseLength": "$context.responseLength",
    "accountId": "$context.accountId",
    "authorizerProperty": "$context.authorizer.property",
    "routeKey": "$context.routeKey",
    "responseLatency": "$context.responseLatency",
    "integrationErrorMessage": "$context.integrationErrorMessage",
    "apiId": "$context.apiId",
    "authorizerClaimsProperty": "$context.authorizer.claims.property",
    "authorizerError": "$context.authorizer.error",
    "authorizerPrincipalId": "$context.authorizer.principalId",
    "awsEndpointRequestId": "$context.awsEndpointRequestId",
    "awsEndpointRequestId2": "$context.awsEndpointRequestId2",
    "customDomainBasePathMatched": "$context.customDomain.basePathMatched",
    "dataProcessed": "$context.dataProcessed",
    "domainName": "$context.domainName",
    "domainPrefix": "$context.domainPrefix",
    "errorMessage": "$context.error.message",
    "errorResponseType": "$context.error.responseType",
    "identityAccountId": "$context.identity.accountId",
    "identityCognitoAuthenticationProvider": "$context.identity.cognitoAuthenticationProvider",
    "identityCognitoAuthenticationType": "$context.identity.cognitoAuthenticationType",
    "identityCognitoIdentityId": "$context.identity.cognitoIdentityId",
    "identityCognitoIdentityPoolId": "$context.identity.cognitoIdentityPoolId",
    "identityPrincipalOrgId": "$context.identity.principalOrgId",
    "identityClientCertClientCertPem": "$context.identity.clientCert.clientCertPem",
    "identityClientCertSubjectDN": "$context.identity.clientCert.subjectDN",
    "identityClientCertIssuerDN": "$context.identity.clientCert.issuerDN",
    "identityClientCertSerialNumber": "$context.identity.clientCert.serialNumber",
    "identityClientCertValidityNotBefore": "$context.identity.clientCert.validity.notBefore",
    "identityClientCertValidityNotAfter": "$context.identity.clientCert.validity.notAfter",
    "identityUserAgent": "$context.identity.userAgent",
    "identityUserArn": "$context.identity.userArn",
    "integrationError": "$context.integration.error",
    "integrationIntegrationStatus": "$context.integration.integrationStatus",
    "integrationLatency": "$context.integration.latency",
    "integrationRequestId": "$context.integration.requestId",
    "integrationStatus": "$context.integration.status",
    "contextIntegrationLatency": "$context.integrationLatency",
    "contextIntegrationStatus": "$context.integrationStatus",
    "path": "$context.path",
    "requestTimeEpoch": "$context.requestTimeEpoch",
    "stage": "$context.stage"
    }
    • Enable Access logs for WebSocket APIs by referring to AWS documentation and when you specify the Log format field use the below JSON.

      AWS API Gateway
    JSON Log Format for WebSocket API
    {
    "apiId": "$context.apiId",
    "authorizeError": "$context.authorize.error",
    "authorizeLatency": "$context.authorize.latency",
    "authorizeStatus": "$context.authorize.status",
    "authorizerError": "$context.authorizer.error",
    "authorizerIntegrationLatency": "$context.authorizer.integrationLatency",
    "authorizerIntegrationStatus": "$context.authorizer.integrationStatus",
    "authorizerLatency": "$context.authorizer.latency",
    "authorizerRequestId": "$context.authorizer.requestId",
    "authorizerStatus": "$context.authorizer.status",
    "authorizerPrincipalId": "$context.authorizer.principalId",
    "authorizerProperty": "$context.authorizer.property",
    "authenticateError": "$context.authenticate.error",
    "authenticateLatency": "$context.authenticate.latency",
    "authenticateStatus": "$context.authenticate.status",
    "connectedAt": "$context.connectedAt",
    "connectionId": "$context.connectionId",
    "domainName": "$context.domainName",
    "errorMessage": "$context.error.message",
    "errorResponseType": "$context.error.responseType",
    "errorValidationErrorString": "$context.error.validationErrorString",
    "eventType": "$context.eventType",
    "extendedRequestId": "$context.extendedRequestId",
    "identityAccountId": "$context.identity.accountId",
    "identityApiKey": "$context.identity.apiKey",
    "identityApiKeyId": "$context.identity.apiKeyId",
    "identityCaller": "$context.identity.caller",
    "identityCognitoAuthenticationProvider": "$context.identity.cognitoAuthenticationProvider",
    "identityCognitoAuthenticationType": "$context.identity.cognitoAuthenticationType",
    "identityCognitoIdentityId": "$context.identity.cognitoIdentityId",
    "identityCognitoIdentityPoolId": "$context.identity.cognitoIdentityPoolId",
    "identityPrincipalOrgId": "$context.identity.principalOrgId",
    "identitySourceIp": "$context.identity.sourceIp",
    "identityUser": "$context.identity.user",
    "identityUserAgent": "$context.identity.userAgent",
    "identityUserArn": "$context.identity.userArn",
    "integrationError": "$context.integration.error",
    "integrationIntegrationStatus": "$context.integration.integrationStatus",
    "integrationLatency": "$context.integrationLatency",
    "integrationRequestId": "$context.integration.requestId",
    "integrationStatus": "$context.integration.status",
    "messageId": "$context.messageId",
    "requestId": "$context.requestId",
    "requestTime": "$context.requestTime",
    "requestTimeEpoch": "$context.requestTimeEpoch",
    "routeKey": "$context.routeKey",
    "stage": "$context.stage",
    "status": "$context.status",
    "wafError": "$context.waf.error",
    "wafLatency": "$context.waf.latency",
    "wafStatus": "$context.waf.status"
    }
  5. To Export logs, refer to Manually subscribe AWS Kinesis Firehose stream to an existing CloudWatch Log Group.

Collect AWS API Gateway CloudTrail logs​

To your Hosted Collector, add an AWS CloudTrail Source using the instructions below.

Collect CloudTrail Lambda data events​

To configure a CloudTrail Source, perform these steps:

  1. Grant Sumo Logic access to an Amazon S3 bucket.

  2. Create a trail for your AWS account. For more information on what events are logged, refer to the API Gateway API calls documentation.

  3. Confirm that logs are being delivered to the Amazon S3 bucket.

  4. Add an AWS CloudTrail Source to Sumo Logic. While configuring the source, add an account field and assign it a value that is a friendly name/alias to your AWS account from which you are collecting logs. This name will appear in the AWS Observability view. Logs can be queried via the account field.

    Fields

Centralized AWS CloudTrail log collection​

In case you have a centralized collection of CloudTrail logs and are ingesting them from all accounts into a single Sumo Logic CloudTrail log source, create the following field extraction rule to map proper AWS account(s) friendly name/alias. You'll need to create it if not already present or update it as required.

Rule Name: AWS Accounts
Applied at: Ingest Time
Scope (Specific Data):
_sourceCategory=aws/observability/cloudtrail/logs

Parse Expression​

Enter a parse expression to create an account field that maps to the alias you set for each sub account. For example, if you used the β€œdev” alias for an AWS account with ID "528560886094" and the β€œprod” alias for an AWS account with ID "567680881046", your parse expression would look like this:

| json "recipientAccountId"
// Manually map your aws account id with the AWS account alias you setup earlier for individual child account
| "" as account
| if (recipientAccountId = "528560886094", "dev", account) as account
| if (recipientAccountId = "567680881046", "prod", account) as account
| fields account

Installing the AWS API Gateway app​

Now that you have set up a collection for the AWS API gateway, install the Sumo Logic app to use the pre-configured dashboards that provide visibility into your environment for real-time analysis of overall usage.

To install the app:

  1. Select App Catalog.
  2. In the πŸ”Ž Search Apps field, run a search for your desired app, then select it.
  3. Click Install App.
    note

    Sometimes this button says Add Integration.

  4. On the next configuration page, under Select Data Source for your App, complete the following fields:
    • Data Source. Select one of the following options:
      • Choose Source Category and select a source category from the list; or
      • Choose Enter a Custom Data Filter, and enter a custom source category beginning with an underscore. For example, _sourceCategory=MyCategory.
    • Folder Name. You can retain the existing name or enter a custom name of your choice for the app.
    • All Folders (optional). The default location is the Personal folder in your Library. If desired, you can choose a different location and/or click New Folder to add it to a new folder.
  5. Click Next.
  6. Look for the dialog confirming that your app was installed successfully.

Post-installation

Once your app is installed, it will appear in your Personal folder or the folder that you specified. From here, you can share it with other users in your organization. Dashboard panels will automatically start to fill with data matching the time range query received since you created the panel. Results won't be available immediately, but within about 20 minutes, you'll see completed graphs and maps.

Viewing AWS API Gateway dashboards​

All dashboards have a set of filters that you can apply to the entire dashboard. Use these filters to drill down and examine the data to a granular level.

  • You can change the time range for a dashboard or panel by selecting a predefined interval from a drop-down list, choosing a recently used time range, or specifying custom dates and times. Learn more.
  • If required, configure the refresh interval rate for a dashboard or panel by clicking the drop-down arrow next to the refresh icon.
  • Click the funnel icon in the dashboard top menu bar to filter dashboard with Template Variables.
    filter-dashboards

Overview​

The AWS API Gateway - Overview dashboards provides insights into API Gateway performance throughout your infrastructure, including API calls, latency, client and server-side errors, connect and message count, data processed, API cache hits, and back-end cache misses.

There are three overview dashboards: AWS API Gateway - Overview (REST API), AWS API Gateway - Overview (HTTP API), and AWS API Gateway - Overview (WebSocket API).

Use these dashboards to:

  • Get a high-level overview of your API Gateway infrastructure.
  • Compare API requests made today, yesterday, and last week to identify any abnormal deviations in load
  • Get quick statistics on the number of requests and frequently used APIs.
  • Monitor the number of client-side and server-side errors processed by API Gateway instances.
  • Monitor relative, backend, and overall API responsiveness
  • Monitor API cache hits and misses by API Gateway across your infrastructure to optimize cache capacities and achieve desired performance.

AWS API Gateway - Overview (REST API)​

Overview (REST API)

AWS API Gateway - Overview (HTTP API)​

Overview (HTTP API)

AWS API Gateway - Overview (WebSocket API)​

Overview (WebSocket API)

Access Logs​

Access logs contains information about who has accessed your API and how the caller accessed the API. To populate the dashboards, you must explicitly enable access logs.

AWS API Gateway - Access Logs - Overview​

The AWS API Gateway - Access Logs - Overview dashboard provides insights on Request's latency, Request trend, Distribution of requests by Method, Stage, and Protocol, Client's location, Request status code trend, and slowest requests.

Use this dashboard to:

  • Monitor Latency across your infrastructure for all kind of APIs.
  • Monitor total API call, average response size, and length and request trend.
  • Monitor API requests trend by stage, HTTP method, user agent and protocol.
Access Logs - Overview

AWS API Gateway - Access logs - Errors​

The AWS API Gateway - Access logs - Errors dashboard provides insights on statistics of the top 20 failed requests, error messages trends, client's location, errors by response type, recent authorizer errors, missing authentication token errors, and WAF errors.

Use this dashboard to:

  • Monitor all the failed requests, error messages, and their trends.
  • Monitor failed requests with their distribution by response type and client IP.
  • Monitor recent authorizer and missing authentication token errors.
Access logs - Errors

Audit Events​

The AWS API Gateway - Audit Events dashboard provides detailed audit insights into API Gateway events by various dimensions including event names, trends, regions, user agents, and recipient account IDs.

Use these dashboards to:

  • Monitor all API Gateway-related audit logs available via CloudTrail events
  • Monitor incoming user activity locations for both successful and failed events to ensure the activity matches with expectations
  • Monitor successful and failed API Gateway events, users and user agents / fail activities, and failure reasons
  • Monitor requests coming in from known malicious IP addresses detected via Sumo Logic Threat Intel
Audit Events

Latency and Cache​

The AWS API Gateway - Latency, Cache dashboards provides insights into API Gateway performance including API requests, latency, integration latency, and its statistics, API cache hits, and back-end cache misses.

Cache related panels will populate for apis which have cache enabled.

There are two dashboards related to latency and cache: AWS API Gateway - Latency, Cache (REST API) and AWS API Gateway - Latency (HTTP and WebSocket API).

Use these dashboards to:

  • Monitor the overall responsiveness of API calls (latency), comparing times (in milliseconds) between receiving a request from and returning a response to a client.
  • Monitor the responsiveness of the backend (integration latency), comparing times (in milliseconds) between API Gateway relay requests to and receiving a response back from the backend.
  • Monitor API cache hits and misses to optimize cache capacities across your infrastructure and achieve desired performance.
  • Compare API requests made today, yesterday, and last week to identify any abnormal deviations.

AWS API Gateway - Latency, Cache (REST API)​

Latency, Cache (REST API)

AWS API Gateway - Latency (HTTP and WebSocket API)​

Latency (HTTP and WebSocket API)

Errors​

The AWS API Gateway - Errors dashboards provides insights into API Gateway HTTP 4xx and 5xx code errors throughout your infrastructure, including API requests, client errors, integration errors, execution errors, client-side errors, and server-side errors.

There are two dashboards related to errors: AWS API Gateway - Errors (REST API) and AWS API Gateway - Errors (HTTP and WebSocket API).

Use these dashboards to:

  • Monitor the total number of client-side errors based on API name and region across your infrastructure.
  • Monitor the total number of server-side errors based on API name and region across your infrastructure.
  • Monitor the total number of client, integration and execution errors based on API name and region across your infrastructure.
  • Compare API requests made today, yesterday, and last week to identify any abnormal deviations.

AWS API Gateway - Errors (REST API)​

Errors (REST API)

AWS API Gateway - Errors (HTTP and WebSocket API)​

Errors (HTTP and WebSocket API)

Enhanced Monitoring​

The AWS API Gateway - Enhanced Monitoring dashboards provides detailed insights into API Gateway performance throughout your infrastructure, including the number and types of API calls, API resources, cache hits, and misses, latency averages, data processed, and errors by HTTP method, resource and stage.

To populate the dashboards, you must explicitly enable detailed CloudWatch metrics.

There are three dashboards related to enhanced monitoring: AWS API Gateway - Enhanced Monitoring (REST API), AWS API Gateway - Enhanced Monitoring (HTTP API), and AWS API Gateway - Enhanced Monitoring (WebSocket API).

Use these dashboards to:

  • Monitor API Gateways across your infrastructure using enhanced metrics.
  • Monitor API requests trend by resource, HTTP method, and deployment stage.
  • Monitor API cache hits and misses to optimize cache capacities to achieve desired performance.
  • Monitor the overall responsiveness of API calls and the backend origin servers
  • Monitor the total number of client-side and server-side errors based on HTTP methods

AWS API Gateway - Enhanced Monitoring (REST API)​

Enhanced Monitoring (REST API)

AWS API Gateway - Enhanced Monitoring (HTTP API)​

Enhanced Monitoring (HTTP API)

AWS API Gateway - Enhanced Monitoring (WebSocket API)​

Enhanced Monitoring (WebSocket API)
Status
Legal
Privacy Statement
Terms of Use

Copyright Β© 2024 by Sumo Logic, Inc.
