Google Cloud VPC

thumbnail icon

The Google Cloud Platform (GCP) Virtual Private Cloud(VPC) provides networking functionality to Compute Engine virtual machine (VM) instances, Kubernetes Engine containers and App Engine Flex. The Sumo Logic App for Google Cloud VPC provides visibility into the activities, traffic, and VPC flow in your GCP. The preconfigured dashboards provide you details on the VPC flows, source and destination IP addresses, ports, protocols, and messages.

Log types

The App uses:

  • Compute Engine VPC Flow Logs. These logs provide information from Compute Engine ​VMs ​for ​network ​operations ​such ​as ​Network ​monitoring, ​forensics, ​real-time security ​analysis ​and ​expense ​optimization.

Sample log messages

{
"message": {
"data": {
"insertId": "h7cue3dc1fr",
"jsonPayload": {
"bytes_sent": "1836",
"connection": {
"dest_ip": "34.192.224.100",
"dest_port": 443,
"protocol": 6,
"src_ip": "10.128.0.3",
"src_port": 56552
},
"dest_location": {
"city": "Ashburn",
"continent": "America",
"country": "usa",
"region": "Virginia"
},
"end_time": "2018-01-26T12:35:10.115UTC",
"packets_sent": "20",
"reporter": "SRC",
"rtt_msec": "49",
"src_instance": {
"project_id": "bmlabs-loggen",
"region": "us-central1",
"vm_name": "vm-selectstar-collector-again",
"zone": "us-central1-c"
},
"src_vpc": {
"project_id": "bmlabs-loggen",
"subnetwork_name": "default",
"vpc_name": "default"
},
"start_time": "2018-01-26T12:35:10.115UTC"
},
"logName": "projects/bmlabs-loggen/logs/compute.googleapis.com%2Fvpc_flows",
"receiveTimestamp": "2018-01-26T12:35:10.115UTC",
"resource": {
"labels": {
"location": "us-central1-c",
"project_id": "bmlabs-loggen",
"subnetwork_id": "3656133720937113003",
"subnetwork_name": "default"
},
"type": "gce_subnetwork"
},
"timestamp": "2018-01-26T12:35:10.115UTC"
},
"attributes": {
"logging.googleapis.com/timestamp": "2018-01-26T12:35:10.115UTC"
},
"message_id": "172581793992900",
"messageId": "172581793992900",
"publish_time": "2018-01-26T12:35:10.115UTC",
"publishTime": "2018-01-26T12:35:10.115UTC"
},
"subscription": "projects/bmlabs-loggen/subscriptions/push-to-sumo"
}

Sample queries

Average latency (ms) by subnet ID
_collector="HTTP Source for GCP Pub/Sub" logName resource timestamp
| json "message.data.resource.type" as type
| parse regex "\"logName\":\"(?<log_name>[^\"]+)\""
| where type = "gce_subnetwork" | where log_name matches "projects/*/logs/compute.googleapis.com%2Fvpc_flows"
| json "message.data.resource" as resource | json field=resource "labels.location","labels.project_id","labels.subnetwork_id","labels.subnetwork_name" as zone,project,subnetwork_id,subnetwork_name nodrop
| json "message.data.resource.labels", "message.data.jsonPayload" as labels, payload
| json field=payload "src_instance","dest_instance" as src_instance,dest_instance nodrop
| json field=payload "src_vpc.vpc_name","dest_vpc.vpc_name" as src_vpc,dest_vpc nodrop
| json field=payload "connection.src_ip","connection.dest_ip","connection.dest_port","connection.src_port" as src_ip,dest_ip,dest_port,src_port
| json field=src_instance "project_id", "zone", "region", "vm_name" as src_project, src_zone, src_region, src_vm nodrop
| json field=dest_instance "project_id", "zone", "region", "vm_name" as dest_project, dest_zone, dest_region, dest_vm nodrop
| json field=payload "bytes_sent","rtt_msec","packets_sent" as bytes, rtt,packets
| timeslice 1m
| avg(rtt) as latency by _timeslice, subnetwork_id, subnetwork_name
| transpose row _timeslice column subnetwork_id,subnetwork_name

Collecting logs for Google Cloud VPC

This page describes the Sumo pipeline for ingesting logs from Google Cloud Platform (GCP) services, and provides instructions for collecting logs from Google Cloud VPC.

Collection Process for GCP Services

The key components in the collection process for GCP services are Google Logs Export, Google Cloud Pub/Sub, and Sumo’s Google Cloud Platform (GCP) source running on a hosted collector.

The GCP service generates logs which are exported and published to a Google Pub/Sub topic through Stackdriver. You will then set up a Sumo Logic Google Cloud Platform source that subscribes to this topic and receives the exported log data.

Google integrations

Configuring collection for GCP uses the following process:

  1. Configure a GCP source on a hosted collector. You'll obtain the HTTP URL for the source.
  2. Create a topic in Google Pub/Sub and subscribe the GCP source URL to that topic.
  3. Create an export of GCP logs from Google Stackdriver Logging. Exporting involves writing a filter that selects the log entries you want to export, and choosing a Pub/Sub as the destination. The filter and destination are held in an object called a sink.

See the following sections for configuration instructions.

note

Logs from GCP services can be exported to any destination including Stackdriver. It is not required to push the GCP logs into Stackdriver for the Sumo Logic Apps to work. Any GCP logs can be excluded from Stackdriver logging and still can be exported to Sumo logic.

Configure a Google Cloud Platform Source

The Google Cloud Platform (GCP) Source receives log data from Google Pub/Sub.

note

You can use the same GCP Source to receive log data from multiple GCP services. For example, you can send logs collected from Google Cloud Application Engine, Google Cloud IAM, and Google Cloud Audit.

However, this is not recommended since you cannot define specific Source Category values to each GCP service. If you create a GCP Source for each service you can define a specific Source Category to each service.

This Source will be a Google Pub/Sub-only Source, which means that it will only be usable for log data formatted as data coming from Google Pub/Sub.

  1. Classic UI. In the main Sumo Logic menu, select Manage Data > Collection > Collection.
    New UI. In the Sumo Logic top menu select Configuration, and then under Data Collection select Collection. You can also click the Go To... menu at the top of the screen and select Collection.
  2. Select an existing Hosted Collector upon which to add the Source. If you do not already have a Collector you'd like to use, create one, using the instructions on Configure a Hosted Collector.
  3. Click Add Source next to the Hosted Collector and click Google Cloud Platform.
  4. Enter a Name to display for the Source. A Description is optional.
    Google integrations
  5. Source Host (Optional). The Source Host value is tagged to each log and stored in a searchable metadata field called _sourceHost. Avoid using spaces so you do not have to quote them in keyword search expressions. This can be a maximum of 128 characters.
  6. Source Category (Optional). The Source Category value is tagged to each log and stored in a searchable metadata field called _sourceCategory. See our Best Practices: Good Source Category, Bad Source Category. Avoid using spaces so you do not have to quote them in keyword search expressions. This can be a maximum of 1,024 characters.
  7. Fields. Click the +Add Field link to add custom log metadata Fields, then define the fields you want to associate. Each field needs a name (key) and value. Look for one of the following icons and act accordingly:
  • orange exclamation point.png If an orange triangle with an exclamation point is shown, use the option to automatically add or enable the nonexistent fields before proceeding to the next step. The orange icon indicates that the field doesn't exist, or is disabled, in the Fields table schema. If a field is sent to Sumo that does not exist in the Fields schema or is disabled it is ignored, known as dropped.
  • green check circle.png If a green circle with a checkmark is shown, the field exists and is already enabled in the Fields table schema. Proceed to the next step.
  1. Advanced Options for Logs.
    Google integrations
  • Timestamp Parsing. This option is selected by default. If it's deselected, no timestamp information is parsed at all.
  • Time Zone. There are two options for Time Zone. You can use the time zone present in your log files, and then choose an option in case time zone information is missing from a log message. Or, you can have Sumo Logic completely disregard any time zone information present in logs by forcing a time zone. It's very important to have the proper time zone set, no matter which option you choose. If the time zone of logs cannot be determined, Sumo Logic assigns logs UTC; if the rest of your logs are from another time zone your search results will be affected.
  • Timestamp Format. By default, Sumo Logic will automatically detect the timestamp format of your logs. However, you can manually specify a timestamp format for a Source. See Timestamps, Time Zones, Time Ranges, and Date Formats for more information.
  1. Processing Rules. Configure any desired filters, such as allowlist, denylist, hash, or mask, as described in Create a Processing Rule.
  2. When you are finished configuring the Source, click Save.

Configure a Pub/Sub Topic for GCP

You need to configure a Pub/Sub Topic in GCP and add a subscription to the Source URL that belongs to the Sumo Logic Google Cloud Platform Source you created. Once you configure the Pub/Sub, you can export data from Google Logging to the Pub/Sub. For example, you can export Google App Engine logs, as described on Collect Logs for Google App Engine.

  1. Create a Pub/Sub Topic in GCP. See Google Cloud documentation for the latest configuration steps.
  2. Create a Pub/Sub subscription to the Source URL that belongs to the Sumo Logic Google Cloud Platform Source you created. See Google Cloud documentation for the latest configuration steps.
    • Use a Push Delivery Method to the Sumo Logic Source URL. To determine the URL, navigate to the Source on the Collection page in Sumo Logic and click Show URL.

Limitations

Google limits the volume of data sent from a Topic. Our testing resulted in the following data limits:

TopicsMegabytes per secondPayload size
One18 MBps (1.5 TB/day)100 KB
One6 MBps (0.5 TB/day)2.5 KB
note

These limits may vary based on your setup and are based on our previous tests.

We recommend the following:

  • Shard messages across topics within the above data limits.
  • Ask GCP to increase the allowable capacity for the topic.

Create export of Google Cloud VPC logs from Google Logging

In this step you export logs to the Pub/Sub topic you created in the previous step.

  1. Go to Logging and click Logs Router.
    Google integrations
  2. Click Create Sink.
    Google integrations
  3. As part of Create logs routing sink, add the following information.
  4. Enter a Sink Name. For example, "gce-vm-instance".
  5. Select "Cloud Pub/Sub" as the Sink Service.
  6. Set Sink Destination to the Pub/Sub topic you created in the Google Cloud Platform Source procedure. For example, "pub-sub-logs".
  7. In Choose logs to include in sink section for resource_type, replace "<resource_variable>" with "gce_subnetwork".
  8. Click Create Sync.

Installing the Google Cloud VPC app

Now that you have set up collection for Google Cloud VPC, install the Sumo Logic App to use the pre-configured searches and dashboards that provide visibility into your environment for real-time analysis of overall usage.

To install the app, do the following:

  1. Select App Catalog.
  2. In the 🔎 Search Apps field, run a search for your desired app, then select it.
  3. Click Install App.
    note

    Sometimes this button says Add Integration.

  4. Click Next in the Setup Data section.
  5. In the Configure section of your respective app, complete the following fields.
    1. Key. Select either of these options for the data source.
      • Choose Source Category and select a source category from the list for Default Value.
      • Choose Custom, and enter a custom metadata field. Insert its value in Default Value.
  6. Click Next. You will be redirected to the Preview & Done section.

Post-installation

Once your app is installed, it will appear in your Installed Apps folder, and dashboard panels will start to fill automatically.

Each panel slowly fills with data matching the time range query and received since the panel was created. Results will not immediately be available, but will update with full graphs and charts over time.

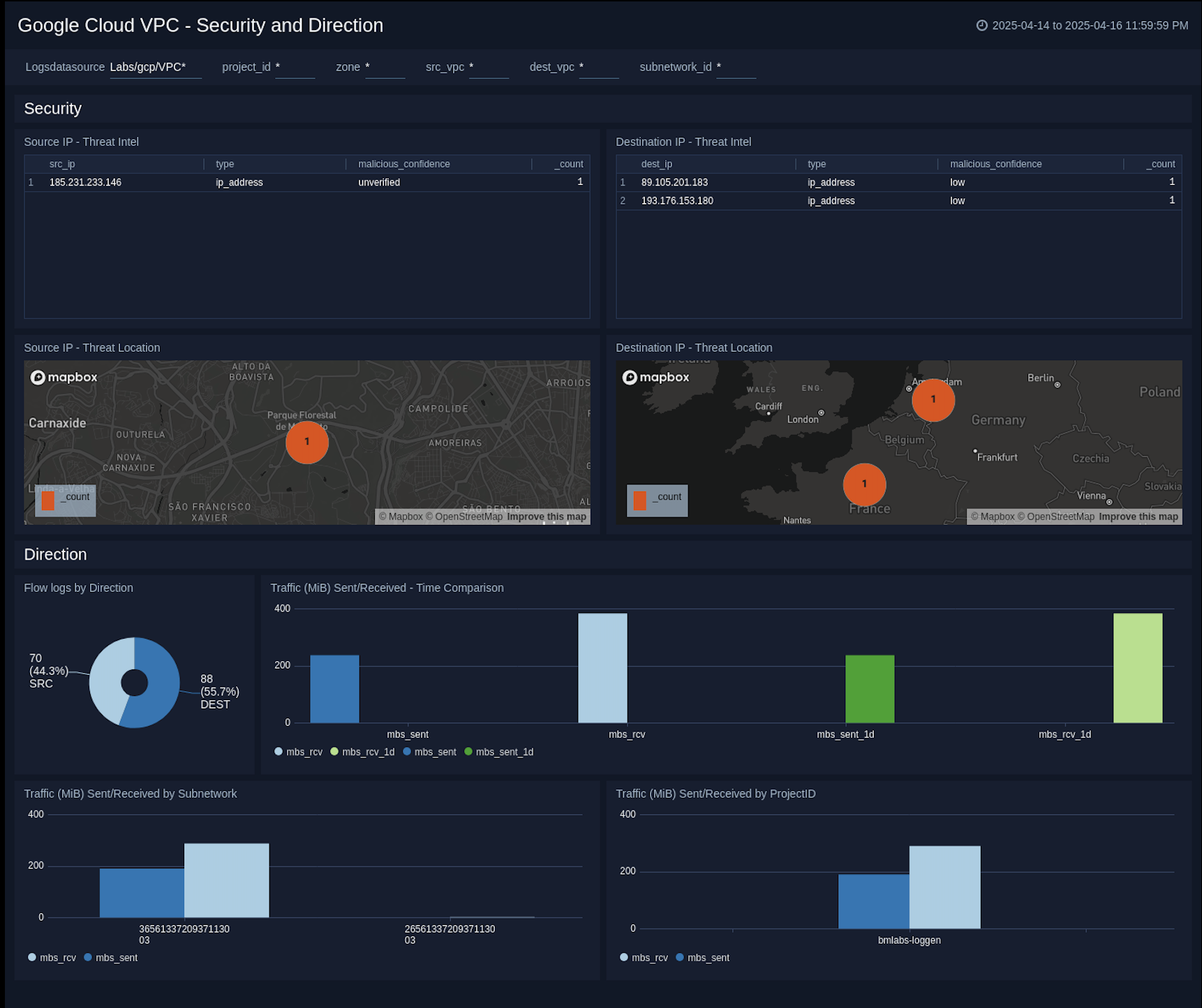

Viewing Google Cloud VPC dashboards

All dashboards have a set of filters that you can apply to the entire dashboard. Use these filters to drill down and examine the data to a granular level.

  • You can change the time range for a dashboard or panel by selecting a predefined interval from a drop-down list, choosing a recently used time range, or specifying custom dates and times. Learn more.
  • You can use template variables to drill down and examine the data on a granular level. For more information, see Filtering Dashboards with Template Variables.
  • Most Next-Gen apps allow you to provide the scope at the installation time and are comprised of a key (_sourceCategory by default) and a default value for this key. Based on your input, the app dashboards will be parameterized with a dashboard variable, allowing you to change the dataset queried by all panels. This eliminates the need to create multiple copies of the same dashboard with different queries.

Overview

See an overview of the top 10 IPs, ports, and VMs; along with trends in traffic and VPC flows in your Google Cloud VPC.

Google Cloud VPC dashboards

Inbound Source Address Locations. Shows number of incoming source IP addresses in the last 24 hours and their location on a world map.

Outbound Source Address Locations. Shows number of outgoing source IP addresses in the last 24 hours and their location on a world map.

Top 10 External IPs by Traffic (MiB). Shows the top 10 external IP addresses and total bytes sent (in blue) or received (in green) last 24 hours on a horizontal bar graph.

Top 10 External IPs by VPC Flows. Shows the top 10 external IP addresses by VPC flows in the last 24 hours on a horizontal bar graph.

Top 10 External Destination Ports by VPC Flows. Shows the top 10 external destination ports by VPC flows in the last 24 hours on a horizontal bar graph.

Top 10 Internal Destination Ports by VPC Flows. Shows the top 10 internal destination ports by VPC flows in the last 24 hours on a horizontal bar graph.

Top 10 Source VMs by Traffic (MiB). Shows the top 10 source VMs by Traffic (MiB) in the last 24 hours on a horizontal bar graph.

Top 10 Destination VMs by Traffic (MiB). Shows the top 10 Destination VMs by Traffic (MiB) in the last 24 hours on a horizontal bar graph.

Traffic (MiB) by Subnetwork. Shows trends in traffic in the last 24 hours by Subnetwork on a line graph with two lines.

Traffic (MiB) by Project. Shows trends in traffic in the last 24 hours by Project on a line graph.

Traffic (MiB) by VPC. Shows trends in traffic in the last 24 hours by VPC on a line graph.

Top 10 Source VMs per VPC by Traffic (MiB). Shows the top 10 Source VMs per VPC by Traffic (MiB) in the last 24 hours on a column graph.

Top 10 Destination VMs per VPC by Traffic (MiB). Show the top 10 Destination VMs per VPC by Traffic (MiB) in the last 24 hours on a column graph.

VPC Flows per Protocol by Hour. See the VPC flows per protocol by hour in the last 24 hours on a column graph.

VPC Activity

See the details of your Google Cloud VPC activity including the trends of traffic, packets, and average latency; along with totals of VPC flows.

Google Cloud VPC dashboards

Traffic (MiB) by Subnetwork ID. Shows trends in traffic by Subnetwork ID in the last hour on a line graph.

Traffic (MiB) by Source VM Over Time. Shows trends in traffic by Source VM over time in the last hour on a column graph.

Traffic (MiB) by Destination VM Over Time. Shows trends in traffic by Destination VM over time in the last hour on a column graph.

Packets by Subnetwork ID. Shows trends in packets by Subnetwork ID in the last hour on a line graph.

Packets by Source VM Over Time. Shows packets by Source VM over time in last hour on a column graph.

Packets by Destination VM Over Time. Shows packets by Destination VM over time in last hour on a column graph.

Average Latency (ms) by Subnetwork ID. Shows the average latency by Subnetwork ID in the last hour on a line graph.

Average Latency (ms) by Source VPC. Shows the average latency by Source VPC in the last hour on a line graph.

Average Latency (ms) by Destination VPC. Shows the average latency by Destination VPC in the last hour on a line graph.

VPC Flows by Source Address. Shows the count of VPC flows by source IP address in the last hour on a pie chart.

VPC Flows by Source Port. Shows the count of VPC flows by source port in the last hour on a pie chart.

VPC Flows by Destination Address. Shows the count of VPC flows by destination IP address in the last hour on a pie chart.

VPC Flows by Destination Port. Shows the count of VPC flows by destination port in the last hour on a pie chart.

Advanced metrics

See the details of your Google Cloud VPC traffic including the trend and outlier in messages, total bytes, packets and latency.

Google Cloud VPC dashboards

Messages per Minute - Outlier. Shows outliers in messages per minute over the last hour on a line graph with threshold.

Messages per Minute - Trend. Shows trends in messages per minute over the last hour on a scatter plot graph along with the predicted progression.

Messages per Minute - Project. Shows the count in messages per minute over the last hour on a column graph.

MBs per Minute - Outlier. Shows outliers in the total bytes per minute sent over the last hour on a line graph with threshold.

MBs per Minute - Trend. Shows trends in total bytes per minute sent over the last hour on a scatter plot graph along with the predicted values.

MBs Box Plot. Shows a box plot of the MBs sent in the last hour with the maximum, upper quartile, median, lower quartile, and minimum values.

Packets per Minute - Outlier. Shows outliers in the total packets sent per minute over the last hour on a line graph showing threshold.

Packets per Minute - Trend. Shows trends in the total packets sent per minute over the last hour on a scatter plot graph along with the predicted progression.

Packets Box Plot. Shows a box plot of the packets sent in the last hour with the maximum, upper quartile, median, lower quartile, and minimum values.

Average Latency (ms) per Minute - Outlier. Shows the outliers in average latency per minute in the last hour on a line graph with threshold.

Average Latency (ms) per Minute - Trend. Shows the trend in average latency per minute in the last hour on a scatter plot graph.

Latency (ms) Box Plot. Shows a box plot of the latency in the last hour with the maximum, upper quartile, median, lower quartile, and minimum values.

Upgrading the Google Cloud VPC app (Optional)

To update the app, do the following:

  1. Select App Catalog.
  2. In the Search Apps field, search for and then select your app.
    Optionally, you can identify apps that can be upgraded in the Upgrade available section.
  3. To upgrade the app, click Upgrade.
    1. If the upgrade does not have any configuration or property changes, you will be redirected to the Preview & Done section.
    2. If the upgrade has any configuration or property changes, you will be redirected to Setup Data page.
      1. In the Configure section of your respective app, complete the following fields.
        • Key. Select either of these options for the data source.
          • Choose Source Category and select a source category from the list for Default Value.
          • Choose Custom and enter a custom metadata field. Insert its value in Default Value.
      2. Click Next. You will be redirected to the Preview & Done section.

Post-update

Your upgraded app will be installed in the Installed Apps folder, and dashboard panels will start to fill automatically.

note

See our Release Notes changelog for new updates in the app.

Uninstalling the Google Cloud VPC app (Optional)

To uninstall the app, do the following:

  1. Select App Catalog.
  2. In the 🔎 Search Apps field, run a search for your desired app, then select it.
  3. Click Uninstall.
Status
Legal
Privacy Statement
Terms of Use

Copyright © 2024 by Sumo Logic, Inc.
