Cisco ESA

Version: 1.1
Updated: Jul 06, 2023

Cisco ESA provides a comprehensive view of security for improved threat intelligence, defense, and remediation. That includes: Centralized management of email spam quarantine, comprehensive threat monitoring across multiple web and email security gateways.

Actions

• Get Spam Quarantine List (Enrichment) - Retrieve Blocklist Entries.
• Edit Spam Quarantine List (Containment) - Add, edit or append Recipient/Sender List/Addresses.

Configure Cisco ESA in Automation Service and Cloud SOAR

Before you can use this automation integration, you must configure its authentication settings so that the product you're integrating with can communicate with Sumo Logic. For general guidance, see Configure Authentication for Automation Integrations.

How to open the integration's configuration dialog

1. Access App Central and install the integration. (You can configure at installation, or after installation with the following steps.)
2. Go to the Integrations page.
   Classic UI. In the main Sumo Logic menu, select Automation and then select Integrations in the left nav bar.
   New UI. In the main Sumo Logic menu, select Automation > Integrations. You can also click the Go To... menu at the top of the screen and select Integrations.
3. Select the installed integration.
4. Hover over the resource name and click the Edit button that appears.

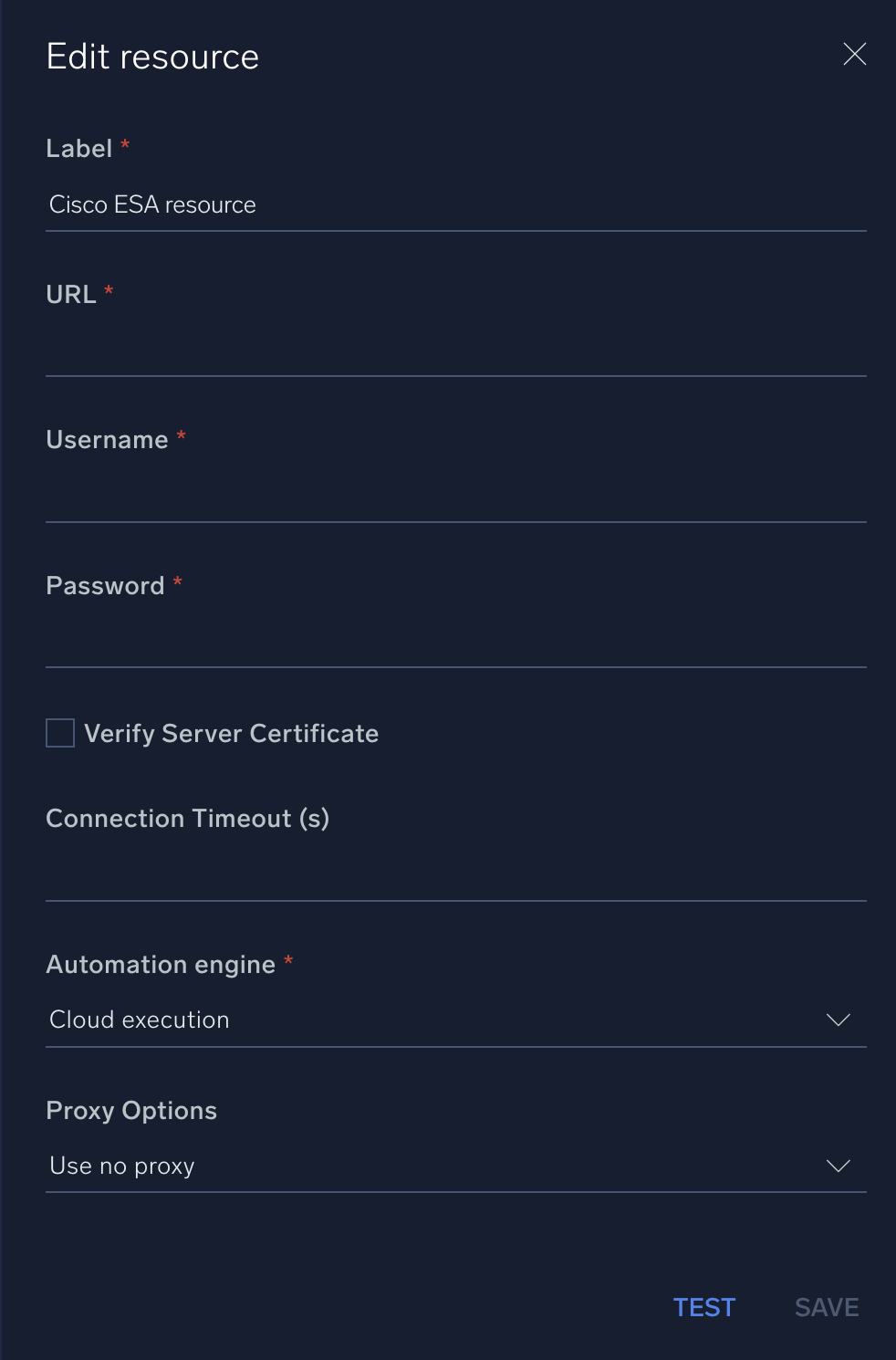

In the configuration dialog, enter information from the product you're integrating with. When done, click TEST to test the configuration, and click SAVE to save the configuration:

• Label. Enter the name you want to use for the resource.

• URL. Enter your Cisco ESA API URL.

• Username. Enter the username of a Cisco ESA admin authorized to provide authentication for the integration.

• Password. Enter the password for the Cisco ESA admin user.

• Verify Server Certificate. Select to validate the server’s SSL certificate.

• Connection Timeout (s). Set the maximum amount of time the integration will wait for a server's response before terminating the connection. Enter the connection timeout time in seconds (for example, 180).

• Automation Engine. Select Cloud execution for this certified integration. Select a bridge option only for a custom integration. See Cloud or Bridge execution.

• Proxy Options. Select whether to use a proxy. (Applies only if the automation engine uses a bridge instead of cloud execution.)

  • Use no proxy. Communication runs on the bridge and does not use a proxy.
  • Use default proxy. Use the default proxy for the bridge set up as described in Using a proxy.
  • Use different proxy. Use your own proxy service. Provide the proxy URL and port number.


For information about Cisco Secure Email Gateway (formerly Email Security Appliance), see Cisco Secure Email Gateway documentation.

Category

Email Gateway

Change Log

• October 12, 2022 - First upload
• July 6, 2023 (v1.1) - Updated the integration with Environmental Variables
