Cisco IOS XE

Version: 1.1
Updated: Jul 06, 2023

Utilize and manipulate ACLs and Interfaces with Cisco IOS XE.

Actions

• Get ACLs (Enrichment) - Gather available ACLs.
• Get ACL (Enrichment) - Gather information on a specific ACL.
• Get Interfaces (Enrichment) - Gather all available interfaces.
• Get Interface (Enrichment) - Gather information on a specific interface.
• Get Interface Oper (Enrichment) - Gather a specific interface name.
• Get Interfaces Oper (Enrichment) - Gather all interface names.
• Add ACL (Containment) - Add a new ACL.
• Update ACL (Containment) - Update an existing ACL.
• Enable Interface (Containment) - Enable an interface.
• Disable Interface (Containment) - Disable an interface.

Configure Cisco IOS XE in Automation Service and Cloud SOAR

Before you can use the integration, you must configure it so that the vendor can communicate with Sumo Logic. For general guidance, see Configure Authentication for Integrations.

1. Access App Central and install the integration.
2. Select the installed integration in the Integrations page.
   Classic UI. In the main Sumo Logic menu, select Automation and then select Integrations in the left nav bar.
   New UI. In the main Sumo Logic menu, select Automation > Integrations. You can also click the Go To... menu at the top of the screen and select Integrations.
3. Select the integration.
4. Hover over the resource name and click the Edit button that appears.

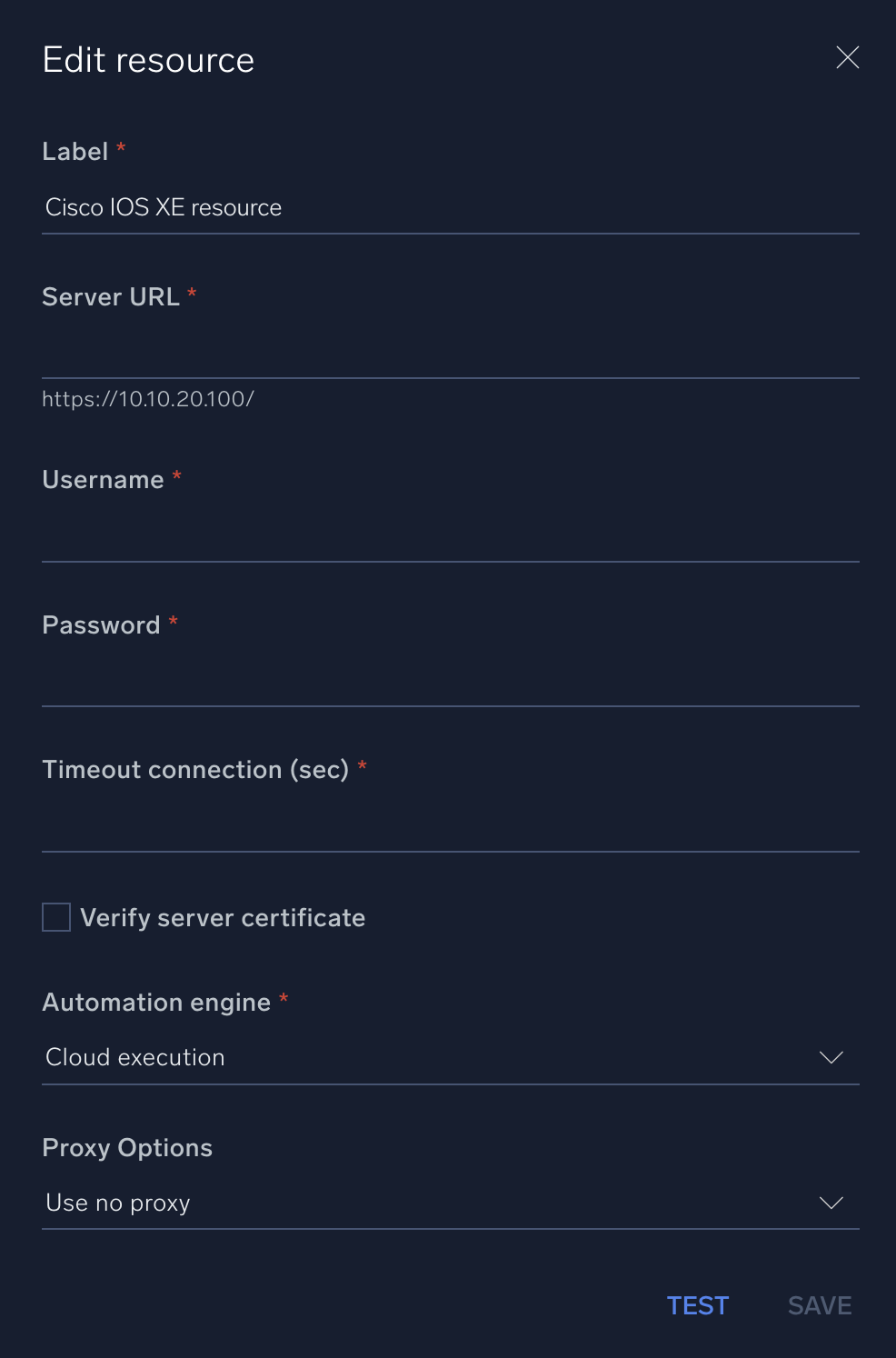

5. In the Add Resource dialog, enter the authentication needed by the resource. When done, click TEST to test the configuration, and click SAVE to save the configuration.

For information about Cisco IOS XE, see Cisco IOS XE documentation.

Change Log

• September 17, 2019 - First upload
• July 6, 2023 (v1.1) - Updated the integration with Environmental Variables
