Cisco ISE


Version: 1.6
Updated: Sep 19, 2023

Utilize Cisco ISE session, policy, and security group information during an investigation.


  • Get Sessions (Enrichment) - Gather session information from Cisco ISE.
  • List Policies (Enrichment) - List all available ISE policies.
  • List Security Groups (Enrichment) - List all available security groups.
  • Get Policies Endpoints (Enrichment) - Gather endpoint policies.
  • Apply Policy (Containment) - Create a new policy.
  • Clear Policy (Containment) - Remove an existing policy.
  • Get Endpoints (Enrichment ) - List all available endpoints.
  • Get Endpoint Identity Groups (Enrichment ) - List all available endpoint identity groups.
  • Get Internal Users (Enrichment ) - List all available internal user.
  • Deployment Info (Enrichment ) - To check if ISE primary node is up or not.

Cisco ISE Configuration

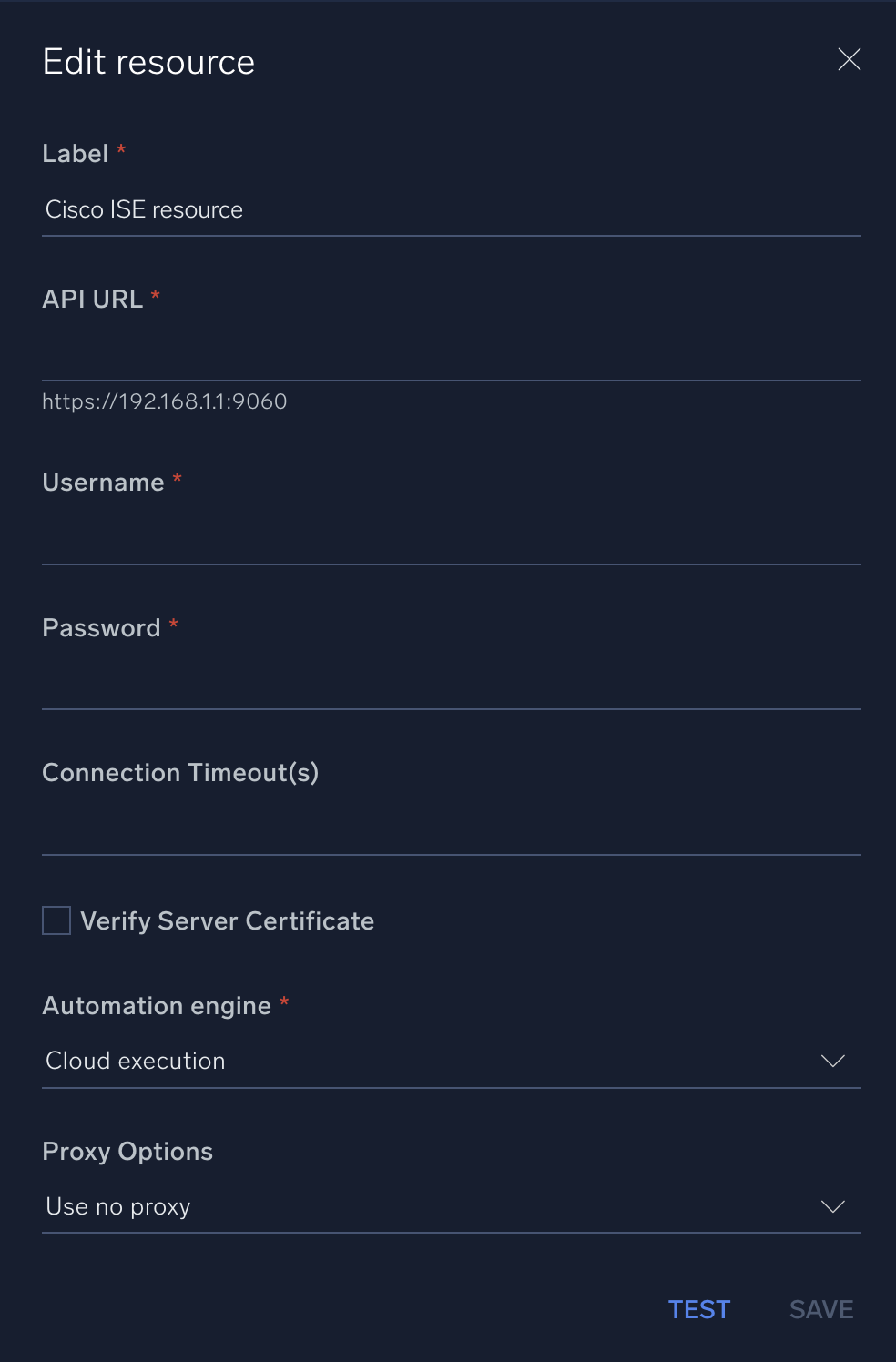

Cisco ISE is configured in a way that you'll need to specify the resource together with the URL and port in the following manner:

  • URL:port The default port used is port 9060 that will need to be enabled.
  • ERS uses HTTPS port 9060 which is by default closed. Clients trying to access this port without enabling ERS first, will face a timeout from the server.

Therefore, the first requirement is to enable ERS from the ISE admin UI.

  1. Go to Administration > Settings > ERS Settings.
  2. Check the Enable ERS for Read/Write radio button as shown in the screenshot below.
  3. The following ISE Administrator Groups allow REST API access:
    • SuperAdmin Read/Write
    • ERSAdmin Read/Write
    • ERSOperator Read Only
      cisco-ise To perform Get Sessions action, the users must be assigned to one of the following Admin Groups:
      • Super Admin
      • System Admin
      • MnT Admin So you have to use both Admins Groups together to use all the actions inside CSOAR.

Change Log

  • September 3, 2019 - First upload
  • January 5, 2021 - Updated actions
  • July 3, 2023 (v1.1) - Updated the integration with Environmental Variables
  • July 14, 2023 (v1.3) - Removed leading/trailing spaces
  • August 17, 2023 (v1.4) - Updated the integration with Environmental Variables
  • September 4, 2023 (v1.5) - Fixed a bug where if the timeout was not specified, an error would occur
  • September 19, 2023 (v1.6) - Versioning
